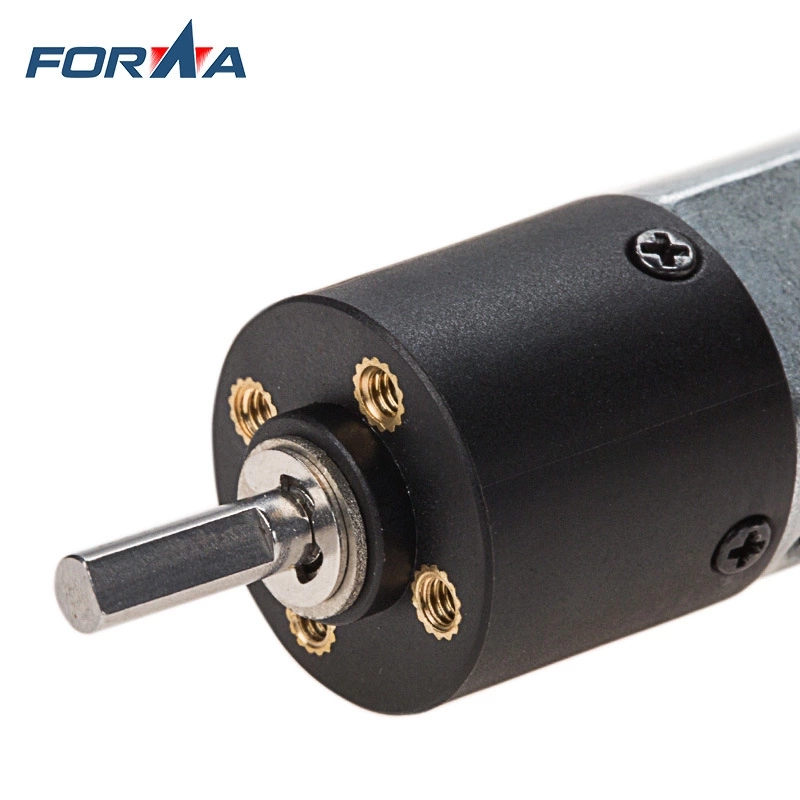

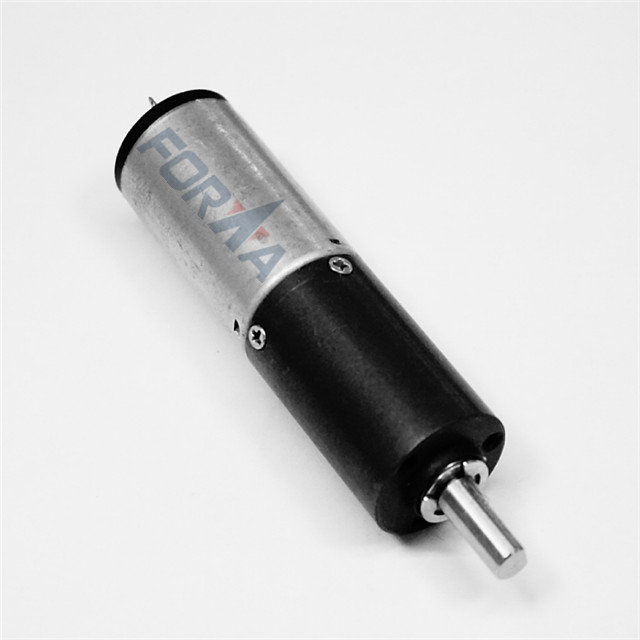

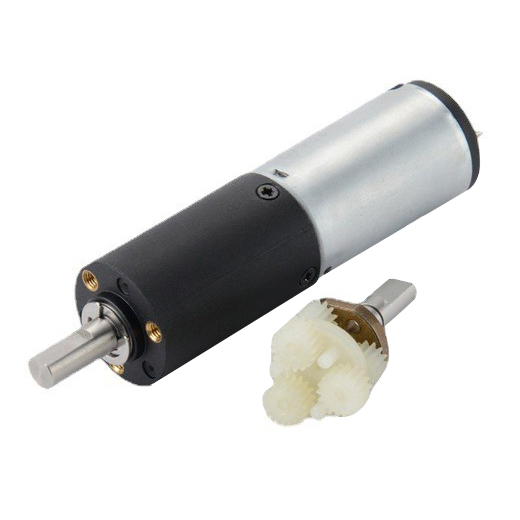

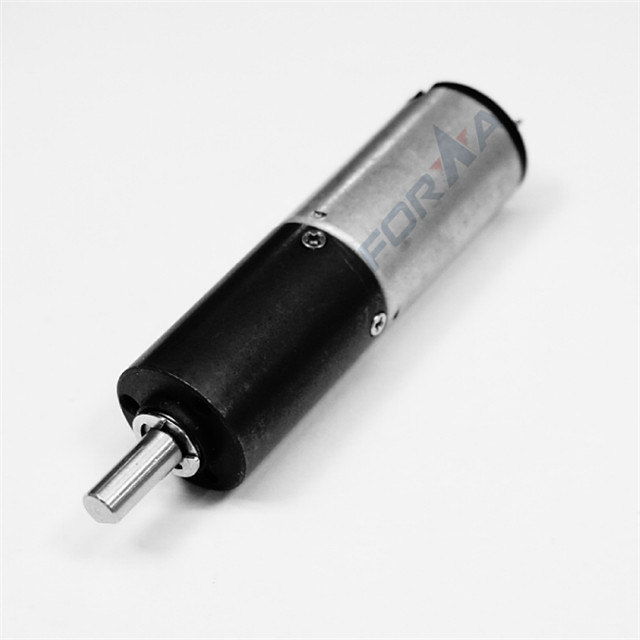

22mm Planetary Gearbox 12v Dc Gear Motor High Torque Electric Micro Speed Reduction Geared Motor

Provide micro gear gearbox motor drives system custom services.

Technical Specifications

Construction	Permanent Magnet
Commutation	Brush
Protect Feature	Drip-proof
Output Power	3W
Voltage (V)	12V DC
Efficiency	IE 1
Motor Diameter	22mm
Gearbox Diameter	22mm
Gear Ratio	16-1296
Material	Plastic
OEM & ODM Service	Available
Gearmotor No Load Current	100-120 mA
Gearmotor Rated Load Torque	720-52780 gf.cm
Gearmotor Rated Current	350 mA
Gearmotor Rated Load Speed	418-5.1 rpm
Noise	< 55 DB
Rotation	CW/CCW Reversible
Customized	Accepted

Product Details

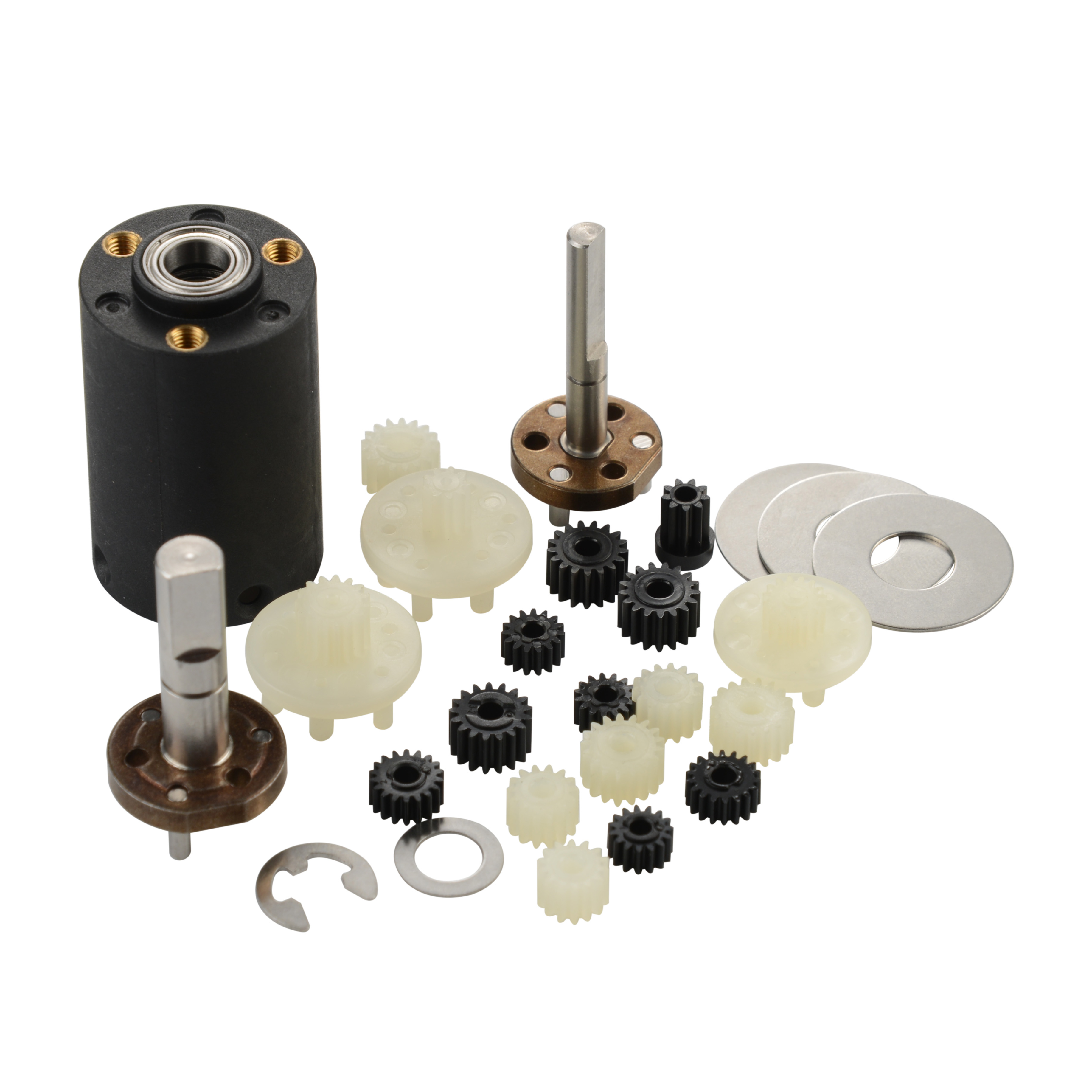

Structural Specifications & Layout

Profile & Capability

Established in 2002, we are a professional gear transmission solution supplier. We provide a comprehensive range of design and manufacturing services to our respected customers, tailoring custom gear transmission schemes to specific project demands.

Customizing various gearboxes per specific performance requirements is our core specialty.

Main Products

DC Gear Motors
Worm Gear Motors
Planetary Gear Motors
Plastic and Metal Gearboxes
Precision Molds
Plastic Injection Parts

Our Service & Standard Quality

We manage operations strictly under certified standards, holding ISO9001, ISO14001, and IATF16949 international credentials alongside numerous patent certifications.

💬

1. Pre-sale

Online customer service support. Rapid response structure to address inquiries within 10 minutes.

⚙️

2. In-sale

Production transparency. Providing real-time pictures and video updates of process & schedules.

🤝

3. After-sale

Regular client follow-ups regarding product performance with a zero-complaints service target.

🛡️

4. Quality

3 layers of comprehensive checks from raw material receipt to end products. 100% inspection with 99%+ quality approval rate.

Frequently Asked Questions

What kind of gear reducer motor can you make?

We can produce DC motors ranging from 3V to 36V, with output power under 40W and external diameter less than 45mm.

Can the gearbox be matched with other motors?

Yes, our standard gearbox can match with brush, brushless, coreless (hollow cup), and stepping motors, provided they fit the gearbox casing structure. Matching with other motors generally requires customized optimization to prevent performance loss, lower efficiency, or lifespan reduction.

Do you offer customized gearboxes?

Yes. As a manufacturer with dedicated R&D capability, we develop custom solutions based on your required gearbox geometry, reduction ratio, and output speed. Alternatively, you can supply your design, and we will optimize it for production and assembly.

What standards govern your planetary reducer quality?

Our products are widely exported to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore, and other global regions. Customers consistently report low operating noise, high torque output, and long-term durability.

How long is the delivery time after placing an order?

Standard gearboxes are typically delivered within 2 weeks. For customized products, sample confirmation is conducted within 30 to 45 days after the design scheme and drawings are locked. Bulk delivery dates will be confirmed post-approval based on the specific quantity.

What logistics services are used for shipping?

We maintain regular long-term shipping integrations with DHL, FedEx, UPS, and other global express carriers. We are also happy to support any shipping method specified by customers.
